LED
wagon lighting loaded with bright SMD LEDs. Available in warmwhite. Ideal for short or long light vehicles, small and medium-sized passenger car or wagontrains.
These bars can almost always find a place in the roof. The special SMD LEDs with large viewing angle very pleasant, even light.
It is connected to a maximum of 24 volt power digital and analog power supply (pulsehard on switching, such as AC lines).
A capacitor for anti-glimmer effect can be easily connected to the existing solder pads of the PCB. The variable brightness control is effected through a regulator on the board.
The power consumption depends on the set brightness. The board is supplied ready for connection.
The light bar can be extended without problems or shortening if necessary.
Technical data:
- Dimensions: 200 x 7.5 mm
- Supply voltage: 10-24 volts DC or AC voltage
- Power consumption: 7.5 mA (min.) - 90mA (max.)

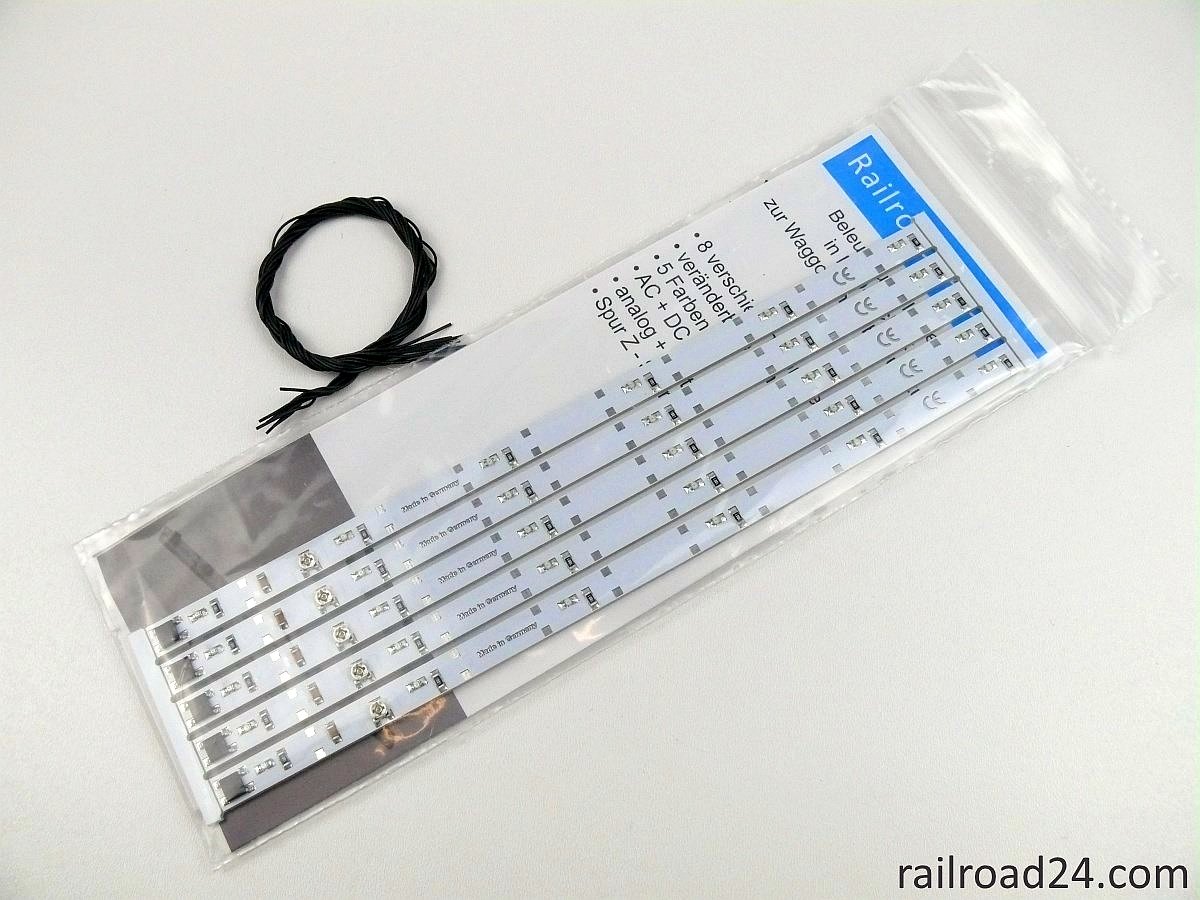

Package contains:
- 5 pcs. wagon lighting 200 mm warmwhite
- 3m connection cable 0,04 mm²
